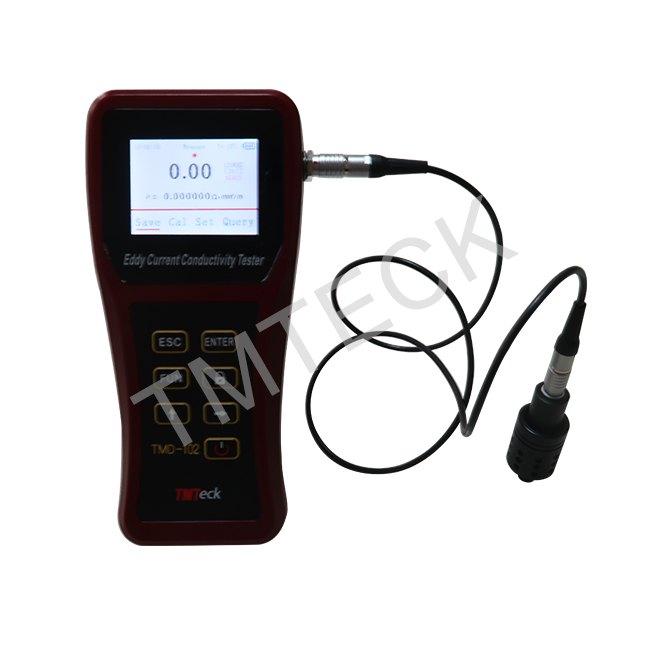

Features
★ The meter uses 60 KHz (aviation industry standard) to inspirit, and the testing data can be read in two kinds of unit: %IACS or MS/m.
★ Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.
★ Two kinds of operate languages satisfy different national demand.
★ It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.
★ The design of the meter is more advantages: user can replace the probe in the outdoor, don’t need to return to the company to adjust the probe into matching the meter.
★ It can store 1000 measurement data.
Applications
★ Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.
★ In the aerospace and automotive industries,monitor the process of heat treatment, the strength and hardness of aluminum alloy.
★ Test the conductivity aluminum when it has not been oxidized.
★ Test the purity grade of materials.
★ Test materials resistivity.
★ Material Thermal Performance analysis.
Technical parameters
| NAME |
TMD-102 |
| Measurement technology |
Eddy current |
| Operating frequency |
60KHz,240KHz |
| Display screen |
240X320 pixels TFT-LCD；4 kinds of background color |
| L*B*H |
180*80*30 mm |
| Instrument case |
Anti-intense impact,water-proofing polyester |
| Weight |
260g |
| Power supply |
High capacity, high performance lithium polymer battery |
| Measuring range |
Conductivity |
6.9%IACS—110%IACS(4.0 MS/m -64MS/m) |
| Resistivity |
Correspond the Conductivity |
| Distinguishing rate |
0.01% IACS
0.000001Ω·(mm)2/m
|
| Measuring accuracy |
0°C to 50°C
0~23%IACS :±0.1%IACS
23%IACS~110%IACS :±0.3%IACS
|
| Temperature compensation |
Automatic compensation to the value of 20 ℃. |
| Normal work environment |
Relative humidity |
0～95% |
| Operating temperature |
0℃～50℃ |
| Language |
English,Chinese |
| Fitting |
Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter. |
| Probe |
Diameter:12.7mm
(Applicable to minimum measuring area diameter at 60KHz is10mm.)
|
|
Diameter: 8mm
(Applicable to minimum measuring area diameter at 240KHz is 7CM
|
Note: The conductivity measurements automatically rectified to the value at 20℃
