کاربرد اصلی：
* حفره قالب ها
* بلبرینگ و سایر قطعات
* تجزیه و تحلیل خرابی مخزن تحت فشار، مولد بخار و سایر تجهیزات
* قطعه کار سنگین
* ماشین آلات نصب شده و قطعات مونتاژ شده دائمی
* شناسایی مواد در انبار مواد فلزی
Features:
*Large screen(320*240 Color LCD), showing all functions and parameters.
*Test at any angle, even upside down.
*Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table.
*Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, *HRA, HV, HB, HS, HL and three types of strength values immediately.
*Seven impact devices are available for special application. Automatically identify the type of impact devices. Large capacity memory could store 600 groups (Relative to average times32～1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
*Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
*Battery information indicates the rest capacity of the battery and the charge status.
*User calibration function.
*USB port with the PC humanity multi-functions data proceeding software.
*Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
*NI-*MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).
*Auto power off to save energy.
*Industrialized housing design, sturdy, compact, portable, high reliability, suitable for harsh operating environment, vibration, shock and electromagnetic interference.
*Excellent after-sale service system for high quality products---two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.
Technical Specifications:
*Measuring Range：HLD (170-960)，HRC (17.9-69.5),HB (19-683)，HV (80-1042)，HS (30.6-102.6)，HRA(59.1-88)，HRB (13.5-101.7)
*Impact Directions：Up, down, horizontal, slanting up, slanting down
*Measuring Materials：Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
*Standards：ASTM A956、DIN50156-1、GB/T17394-1998
*Hardness Scales：HL、HB、HRB、HRC、HRA、HV、HS.
*Tensile Strenght：374to 2652 N/m 2
*Display：128*64 digital matrix LCD
*Memory：600 groups max.（relative to impact times 32～1）
*Work Voltage：9V/500mA.
*Interface Port：USB2.0

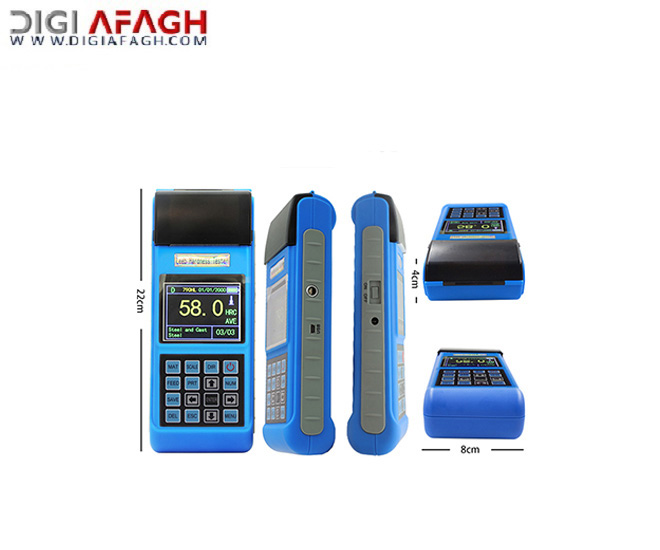

*Dimensions：210 * 85 * 45mm (host)
*Weight：0.6kg (host)
*Continuous Working Period：about 200hours（With backlight off, no printing）

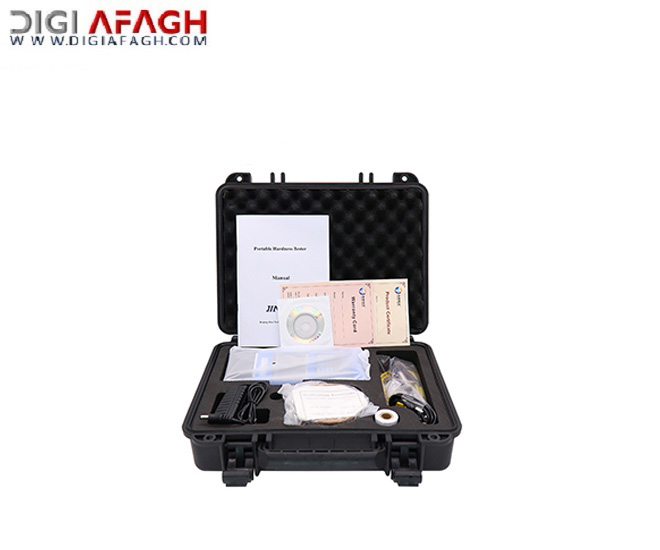

Standard Configuration:
*Main Unit 1
*D type impact device 1
*Standard test block 1
*Cleaning brush (I) 1
*Small support ring 1
*Paper for printing 1
*Manual 1
*DataPro software 1
*Communication cable 1
*Instrument case 1
