Tube XXG- Ceramic Tube Directional 3005 kv

Tube XXG- Ceramic Tube Directional 3005 kv

0 دیدگاه

برند : zhong yi ndt
دسته بندی : Testing Equipment

Tube XXG- Ceramic Tube Directional 3005 kv Ceramic Tube Directional X-Ray Flaw Detector is made of directional ceramic x ray tube and HV coil . It has advantage of small dimension and weight than glass tube , also working life is longer . Its model contains 160kv-350kv, max.penetration reach 70mm.

دیجی آفاق | شبکه هوشمند خرید و فروش کالا به صورت آنلاین: zhongyi

گارانتی اصالت و سلامت فیزیکی کالا

موجود در انبار دیجی آفاق | شبکه هوشمند خرید و فروش کالا به صورت آنلاین
ارسال توسط الوپیک

تعداد	قیمت
قیمت پایه(دلار)	1,479,884,000 تومان
1 - 9	1,479,884,000 تومان
10 - 99	1,345,414,000 تومان
100 - 999	1,210,706,000 تومان
1000 <	1,166,200,000 تومان
تعداد	قیمت

تعداد :

افزودن به سبد خرید

فروشنده	موجودی محصول	قیمت پایه(دلار)	افزودن به سبد خرید
zhongyi	موجود در انبار	1,479,884,000 تومان	افزودن به سبد خرید
فروشنده	موجودی محصول	قیمت پایه(دلار)	افزودن به سبد خرید

نقد و بررسی

Tube XXG- Ceramic Tube Directional 3005 kv

Ceramic Tube Directional X-Ray Flaw Detector is made of directional ceramic x ray tube and HV coil . It has advantage of small dimension and weight than glass tube , also working life is longer . Its model contains 160kv-350kv, max.penetration reach 70mm.

Features :
1. High degree aluminum radiator to improve 30% heat radiation.
2. Portable design, light weight and easy operation.
3. SF6 gas insulator, grounded-anode design to keep the operator safety.
4. Strictly follow 1:1 work and rest radio,avoid the interference by voltage changing.
5. Time-delayed function to reserve enough time for operators moving to safety distance.
6. Fault shooting automatically, pressure indication to make easy operating for the operator.

Beam Angle	Model	Tube Voltage (KV)	Capacity (KW)	Focus Size (mm)	Max. Penetrate A3 steel (mm)	X-ray Generator Weight (kg)
40°	XXG-1605	60-160	＞1.5	1.5*1.5	20	14
	XXG-2005	80-200	＞2.0	1.5*1.5	29	26
	XXG-2505	130-250	＞2.5	2.0*2.0	39	32
	XXG-3005	150-300	＞3.0	2.5*2.5	49	37
	XXG-3505 Max.10 min shoot	200-350	＞3.5	2.5*2.5	70	38

Tube Current		5mA
Power Supply		AC220V ±10% 50HZ
Insulating Material		SF6 gas
Working Temperature		-25°C~ 40°C
Relative Humidity		≤85%
Working Conditions		1. Focus : 600mm 2. Exposure time: 5 min. 3. Film: KODAK , intensified by double lead foil. 4. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min.
Safe Pressure		0.35 ~ 0.50 Mpa (Operation will be prohibited in the case less than 0.35 Mpa)

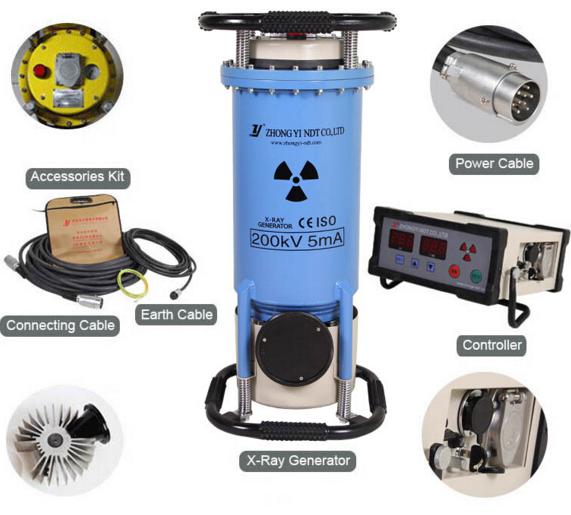

List

No.	Item	Qty
1	Ceramic Tube Directional X Ray Generator	1
2	ZY-2000/ZY-3000 Control Unit	1
3	Connecting cable	1
4	Power cable (2cores) 10m	1
5	Earthing wire 5m	1
6	Fuse	5
7	Bag	1
8	Operation Manual	1
