Barcol Impressor 135HBW ASTM Aluminum Hardness Tester TM937-1

Barcol Impressor 135HBW ASTM Aluminum Hardness Tester TM937-1

0 دیدگاه
TM937-1 can be used to test aluminum and aluminum alloys, copper and copper alloys, GFRP, hard plastic, etc. The sensitivity is much higher than that of the commonly used Wechsler Hardness Tester and the pointer type Barcol Hardness tester In Aluminum processing industry; There is no need to support or move workpiece, easy to operate; Suitable for super large and thick workpieces and assemblies.


گارانتی اصالت و سلامت فیزیکی کالا
تعداد قیمت
قیمت پایه(دلار) 138,516,000 تومان
1 - 9 138,516,000 تومان
10 - 99 133,280,000 تومان
100 - 999 130,900,000 تومان
1000 < 130,900,000 تومان
تعداد قیمت
اصل

نقد و بررسی

Product features

A) the digital display Barcol Hardness Tester is more intuitive, the reading resolution is 0.1HBa, which is much higher than that of the traditional pointer type Barcol Hardness Tester.

B). Pressing needle is easy to replace . When testing the full scale, if the instruction is not in 100HBa, press the needle back to the pressure cylinder, press the Reset reset button to adjust to 100HBa.

C) . External calibration mode: except for the pressure needle, all adjustments do not need to disassemble the casing, adjusting the screws and screen buttons on the instrument is ok.



Technical Parameters



End face diameter

0.157mm

Effective testing range

0-100HBa, equivalent to 25-135HBW

Resolution

0.1HBa

The indication error

81-88 HBa + 1 HBa

42-48 HBa + 2 HBa

Repeatability error

81-88 HBa + 1.5 HBa

42-48 HBa + 2.5HBa

Weight

1 kg ( Batteries are not included)

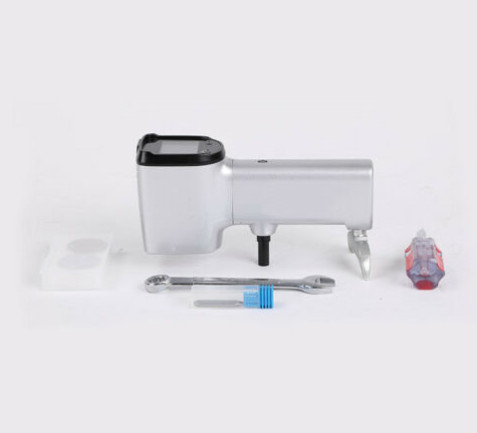

Standard Configuration

Host

Foot

2 hardness blocks

2 pressing needles

Wrench

Bolt driver

Instrument box
