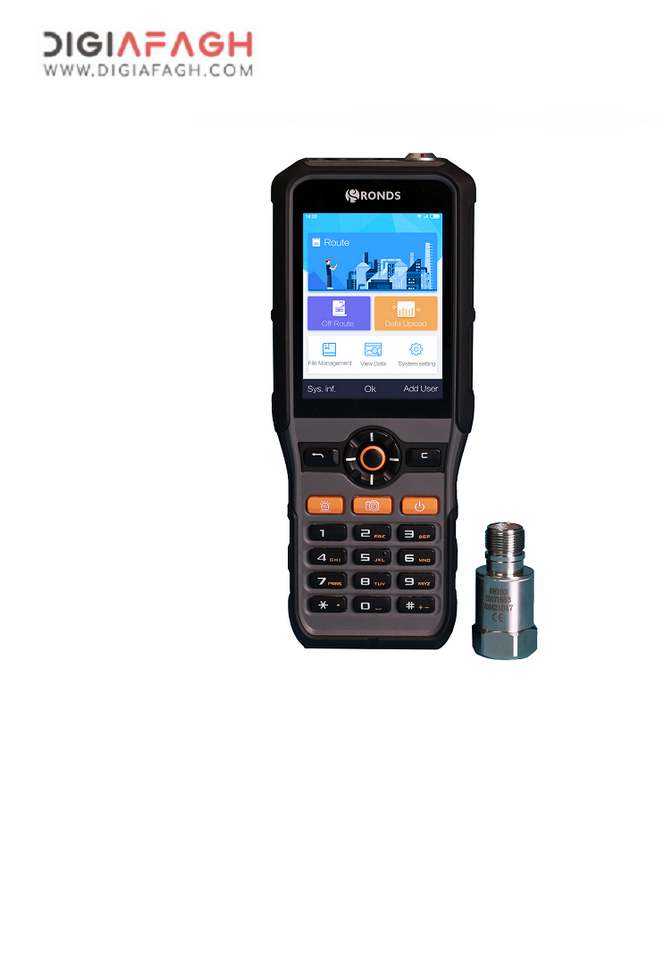

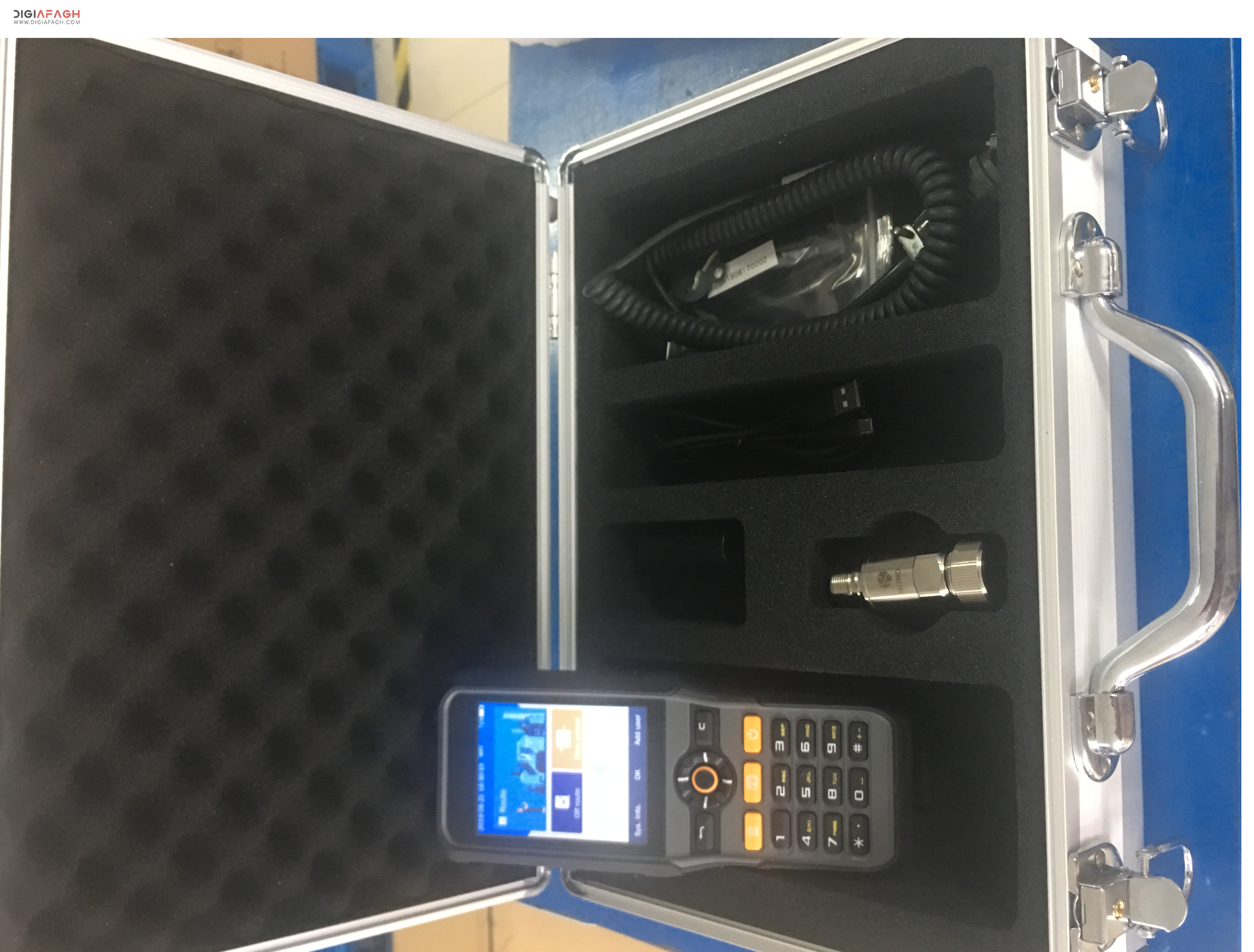

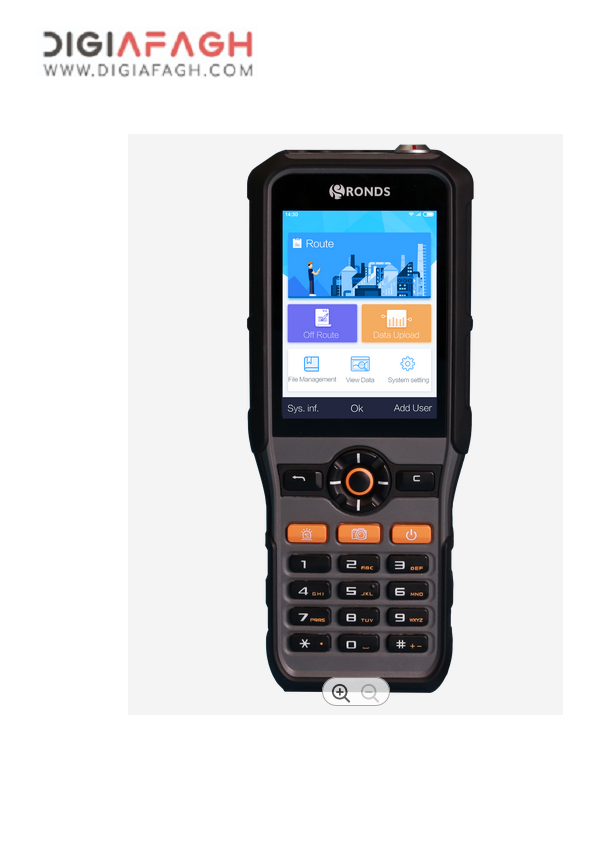

Portable Vibration Meter RH712

0 دیدگاه

برند : RONDS
دسته بندی : Testing Equipment

7-inch ultra-clear touch screen, small size, light weight, portable; Wifi transmission Long standby time and large storage capacity; Comes with data display and basic analysis tools. Product Description ○ Touch Screen ○ Route measurements downloaded from PC software ○Waveform/spectrum analysis and alarm remind ○ Manual input function ○ Infrared temperature measurement ○ Set equipment status ○ Multi-communication method with server: Wi-Fi or USB ○ Camera function ○ Professional PC analysis software ○ Explosion proof version is available and optional ○ CE marking available

دیجی آفاق | شبکه هوشمند خرید و فروش کالا به صورت آنلاین: RONDS

گارانتی اصالت و سلامت فیزیکی کالا

موجود در انبار دیجی آفاق | شبکه هوشمند خرید و فروش کالا به صورت آنلاین
ارسال توسط الوپیک

تعداد	قیمت
قیمت پایه(دلار)	1,071,000,000 تومان
1 - 9	1,071,000,000 تومان
10 - 99	952,000,000 تومان
100 - 999	904,400,000 تومان
1000 <	833,000,000 تومان
تعداد	قیمت

تعداد :

افزودن به سبد خرید

فروشنده	موجودی محصول	قیمت پایه(دلار)	افزودن به سبد خرید
RONDS	موجود در انبار	1,071,000,000 تومان	افزودن به سبد خرید
فروشنده	موجودی محصول	قیمت پایه(دلار)	افزودن به سبد خرید

نقد و بررسی

Product Description

○ Touch Screen

○ Route measurements downloaded from PC software

○Waveform/spectrum analysis and alarm remind

○ Manual input function

○ Infrared temperature measurement

○ Set equipment status

○ Multi-communication method with server: Wi-Fi or USB

○ Camera function

○ Professional PC analysis software

○ Explosion proof version is available and optional

○ CE marking available

Item	Specification	Item	Specification
Channel	CH1:Vibration(ICP accelerometer), voltage(±5V AC)	Infrared temperature detector	Temperature range:-30 ~ 420(℃) Precision:±2%,±2℃ Maximal Emission rate:0~1 adjustable Distance coefficient:25:1
Data acquisition parameters	Frequency span:2~10kHz Sampling frequency:Maximal 25.6KHz Hardware Integral:integration, double integration A/D conversion:16 bit Harmonic distortion:<-70dB Precision:±2% parameters:Sampling frequency,high pass filter,low pass filter,Sampling length Waveform length:1024,2048,4096,8192 Lines: 400,800,1600, 3200LINES Averaging:linearity,peak hold Window function type: Rectangle, Hanning	Dimension	height×width×depth:195×80 ×37(mm) grip size(67width×30depth): 68×31(mm)
		LCD	3.5inch,640×480 pixels,IPS TFT capacitive touch screen
		Weight	Normal: 465g; EX: 455g
		Vibration sensor	External vibration sensor connection
		Working environment	Temperature:-10~50℃ humidity:< 95% (without condensate) protection grade IP65, dustproof, waterproof
		Charging time	4 hours
Communication	USB2.0 ; WIFI	Radio frequency identification	UHF 900M RFID recognition distance 30CM
Storage capacity	Standard configuration 1G	SD card	8Gbyte micro SD card expandable
★Camera	500 5million pixels, auto-focus camera	Flashlight	Flashlight, convenient for dark place
Lion battery	4.5hours for normal version, 2.5hours for EX version	Anti-explosion	ExibIIBT4 Gb
CE Certification	Pass CE certification	Metrology attestation	Pass nation metrology bureau vertification
