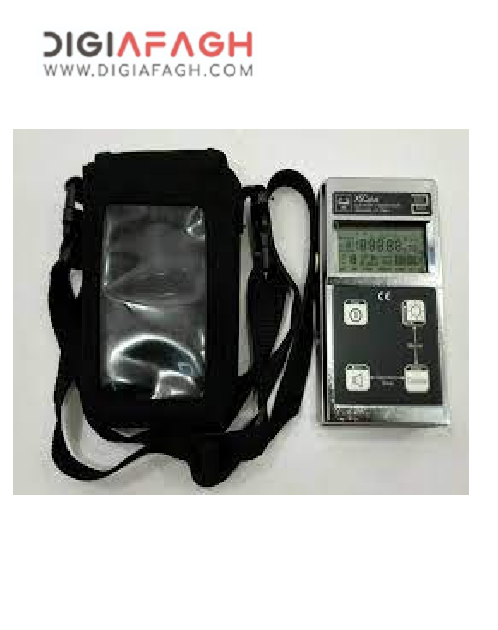

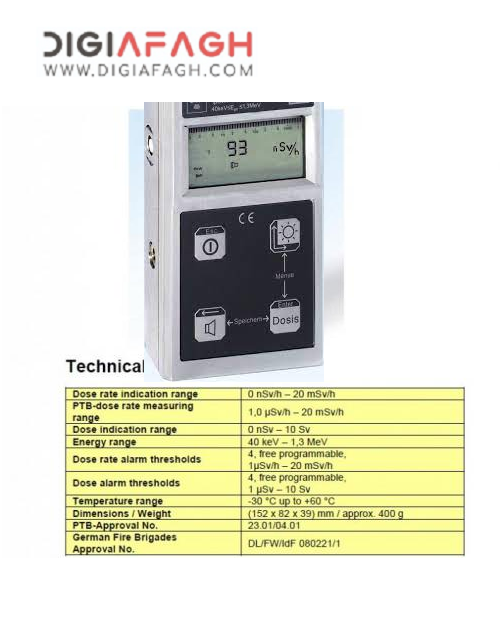

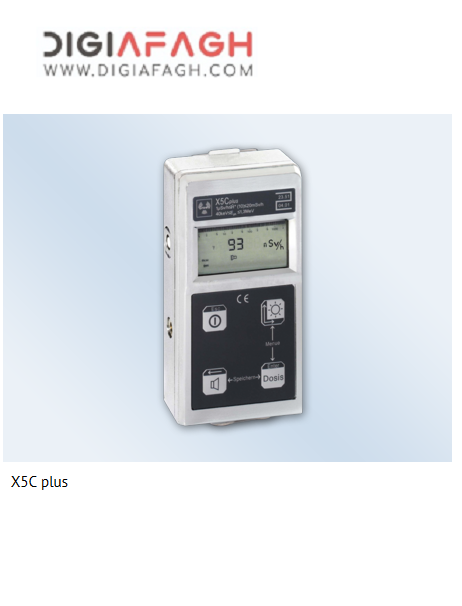

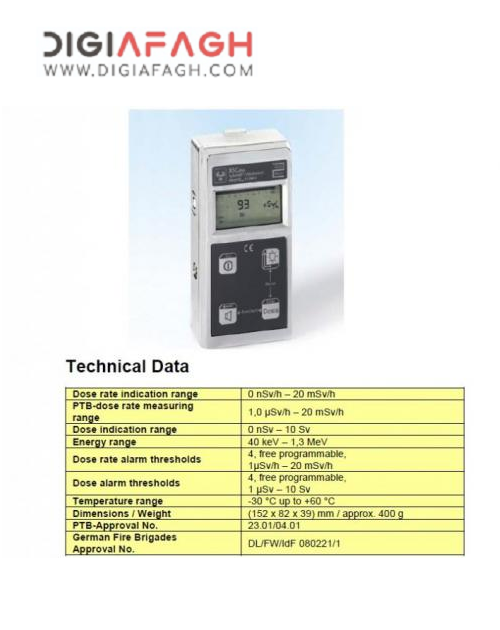

X5C plus - Dose Rate Meters - GRAETZ

Dose rate measuring system with dose indication and alarm function for personal radiation protection when handling ionising radiation, with RS-232 interface und connection facility for an external probe.

Fields of application

NDT, Fire Brigades, Civil Defence, Authorities, Customs, Shipping Companies, Nuclear Medicine, Nuclear Technology, Industry, Chemistry, Research

Features

• PTB-approved dose rate meter for measuring gamma radiation and
  X-rays
• measuring size: ambient dose rate equivalent Ḣ*(10)
• detector: energy compensated GM tube
• large digital indication of measured values on LC display (illuminable)
• selectable dose rate or dose indication with integration time
• additional quasi-analog dose rate indication
  (3.5 decades, logarithmic bar graph)
• indication of peak and average dose rate value
• 4 free programmable dose and dose rate alarm thresholds
• automatic or manual storage of measured dose and dose rate values
  together with date and time
• evaluation/indication of residual time for staying in the current radiation field with regard to the maximum allowed dose
• switchable acoustic single-pulse indication
• clear menu-driven user navigation for easy operation,
  partly secured by password
• storage of set parameters even when device is switched off or during battery change
• continuous self testing and monitoring ensures high reliability
• compact, metallized housing made of high impact-proof plastic (easy to decontaminate), sealed for submersion up to 1 m depth (IP67)
• extensive accessories, as e.g. probes for extending the measuring range and fields of application, probe cable, leather carrying bag, transport case (aluminium or plastic), accumulator, recharger,
  PC cable, etc.
• direct combination with Telescope Probe DE , CE-Telescope or Telescope Adapter
• automatic probe identification
• RS-232 interface
